Missing Breadcrumb Navigation for collapsed subprocesses in bpmn.js + Angular Integration

[florinho]

Hello, i have integrated bpmn-js with an angular application using the example as a reference. I’ve noticed two issues related to collapsed subprocesses.

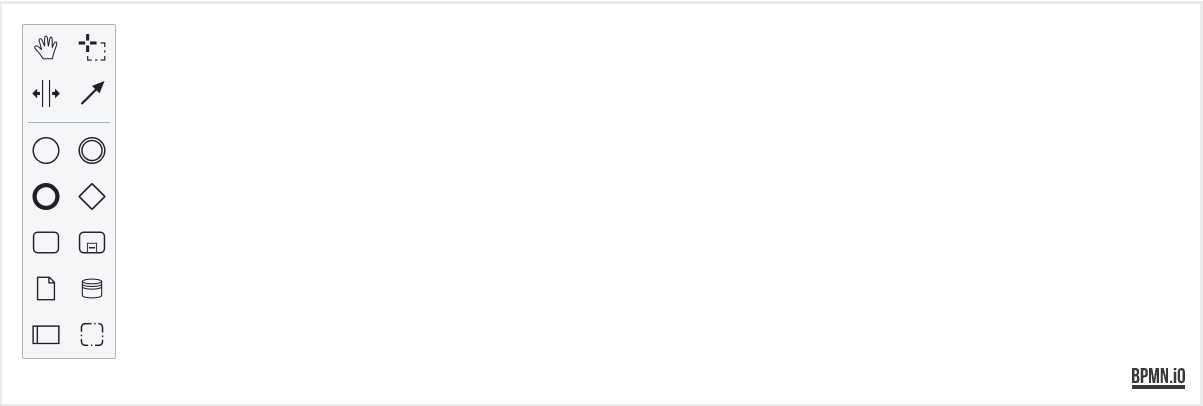

1. No breadcrumb navigation appears when drilling down into subprocesses.

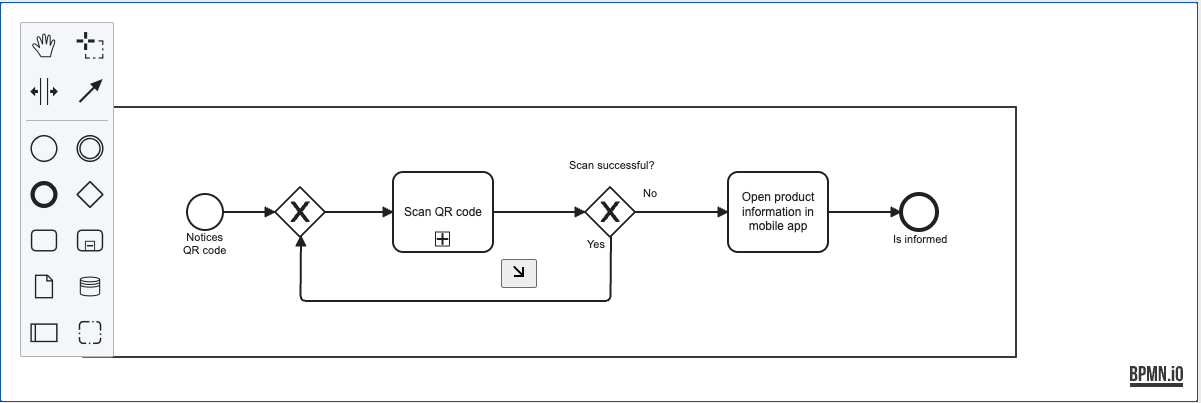

2. The drilldown button is always visible and looks different compared to the one in the bpmn.io demo viewer


This behavior also appears in the referenced Angular example project. What do I have to do to enable breadcrumb navigation for collapsed subprocesses?

Thanks in advance!

[jarekdanielak]

Add bpmn-js styles to angular.json:

"styles": [
  "node_modules/bpmn-js/dist/assets/diagram-js.css",
  "node_modules/bpmn-js/dist/assets/bpmn-js.css",
  "node_modules/bpmn-js/dist/assets/bpmn-font/css/bpmn.css",
  "src/styles.css"
],

[florinho]

Thanks, that solved it!
